22K Logarithmic 16mm Potentiometer with Switch
SKU 484821
MPN: 484821
Availability:
954 in stock
Original price
£0.67
-
Original price
£0.67
Original price
£0.67
£0.67
-
£0.67
Current price
£0.67

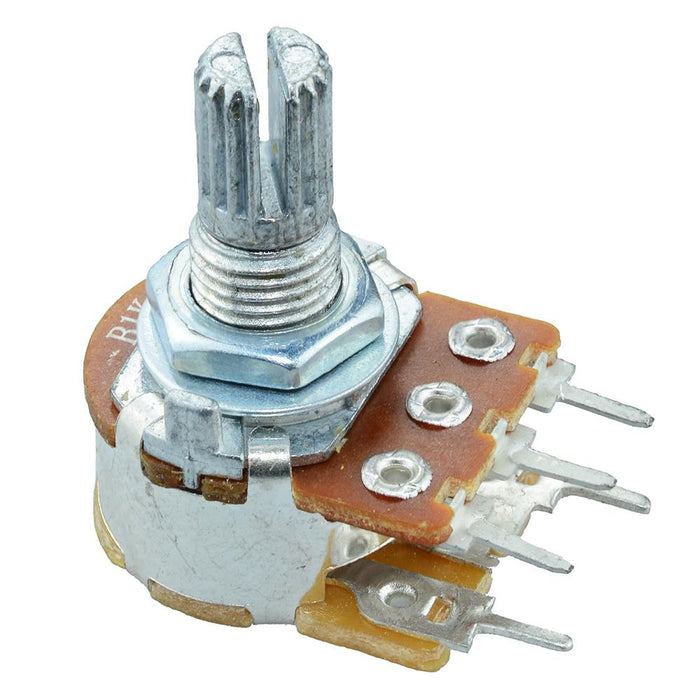

22K logarithmic switched 16mm potentiometer with a splined 6mm shaft suitable for PCB mounting.
Features switch Standard 16mm diameter size 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 150V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.063W |
| Resistance | 22KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
