![22K Linear 16mm Potentiometer Solder Lugs](http://www.switchelectronics.co.uk/cdn/shop/files/3ad2e5ad-64fb-439e-bda3-ff9567fe53d7_700x700.jpg?v=1687367557)

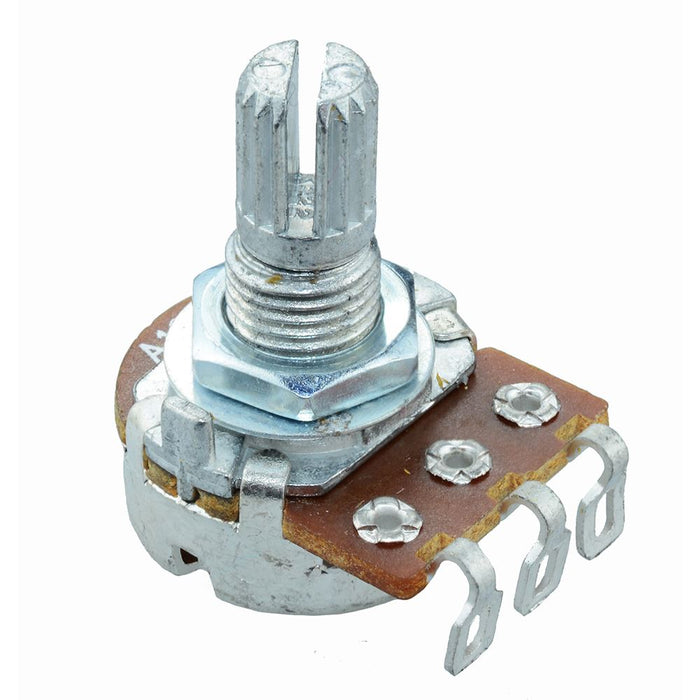

22K Linear 16mm Potentiometer Solder Lugs
SKU 481628
MPN: 481628
Availability:
872 in stock
Original price
£0.51
-
Original price
£0.51
Original price
£0.51
Inc VAT
£0.51
-
£0.51
Current price
£0.51
Inc VAT
22k linear potentiometer featuring a splined 6mm shaft and solder contacts.
220K linear Standard 16mm diameter size Solder lug contacts 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
Back order lead time | 45 Days |
Dimensions | 17mm Diameter |
Maximum voltage | 200V |
Mounting hole diameter | 7mm |
Mounting type | Panel Mount |
Operating temperature | -25°C to +70°C |
Pitch | 5mm |
Power rating | 0.125W |
Resistance | 22KΩ |
Shaft diameter | 6mm |
Taper | Linear |
Termination type | Solder Lug |
Tolerance | ±20% |
Total rotation | 300° |
