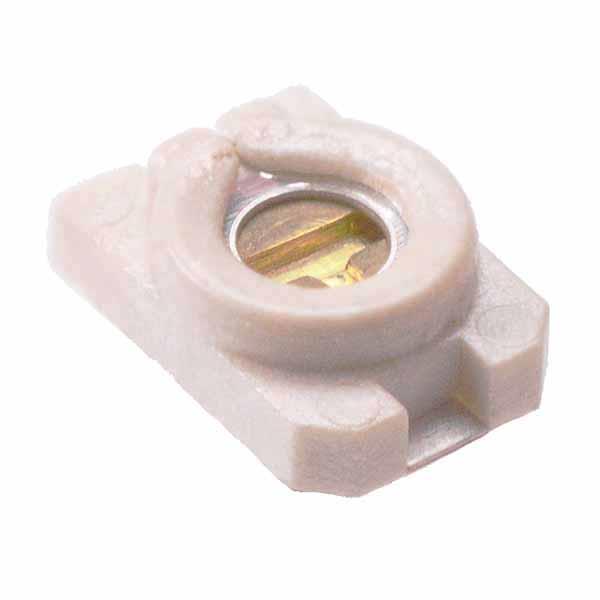

20pF SMD Variable Ceramic Trimmer Capacitor 85°C
SKU 482941
MPN: JKA3M20T
Availability:
473 in stock
Original price
£0.50
-
Original price
£0.50
Original price
£0.50
Inc VAT
£0.50
-
£0.50
Current price
£0.50
Inc VAT
20pF miniature ceramic trimmer capacitor manufactured from a high temperature polymer with low dielectric loss and good mechanical strength. The capacitor features a sealed construction and is designed for making fine adjustments and recalibration of electrical circuits.
Capacitance drift: ±3% DC working voltage: 100VDC Colour coded case for easy identification Very good Q and high resonant frequency Designed for reflow soldering Lowest capacitance drift Sealed construction prevents the penetration of Flux and Dust Dimensions: 3.2mm x 4.5mm x 1.5mm (W x L x T)
Specification
Back order lead time | 45 Days |
Capacitance | 5.5-20pF |
Length | 4.5mm |
Moq | 5 |
Mounting style | Surface Mount |
Operating temperature | -25°C to +85°C |
Thickness | 1.5mm |
Voltage rating | 100VDC |
Width | 3.2mm |
