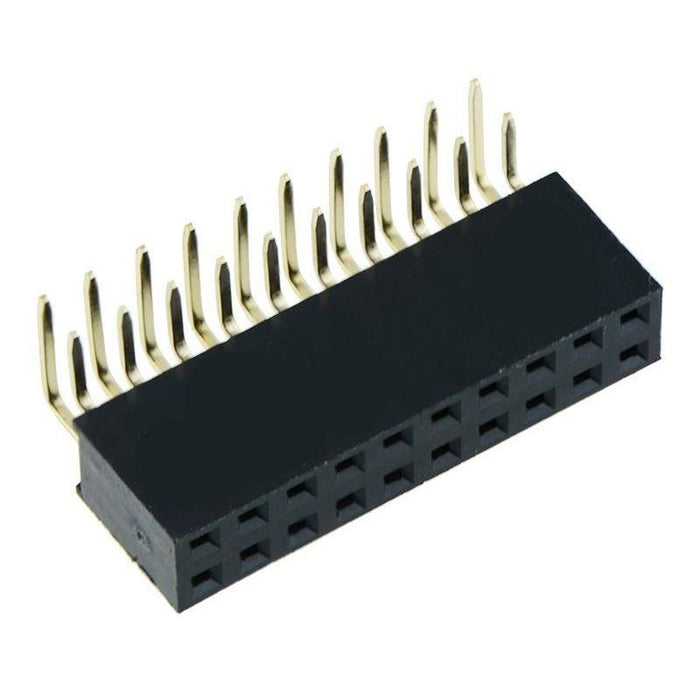

20-Way Double Row Right Angle PCB Socket 2.54mm
SKU 329044
MPN: 329044
Availability:
601 in stock
Original price
£0.46
-
Original price
£0.46
Original price
£0.46
£0.46
-
£0.46
Current price
£0.46
Right-angle type double row sockets with a 2.54mm pitch perfect as a removable connection for flat cables along with many other electronic applications.
Gold plated brass contacts 0.4mm pin diameter Solder termination Pitch: 2.54mm Pin height: 3.2mm Socket height: 8.4mm
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 1A |
| Housing Material | PA6T |
| Mounting Type | PCB Mount |
| Number of Pins | 20 |
| Number of Ways | 20 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
