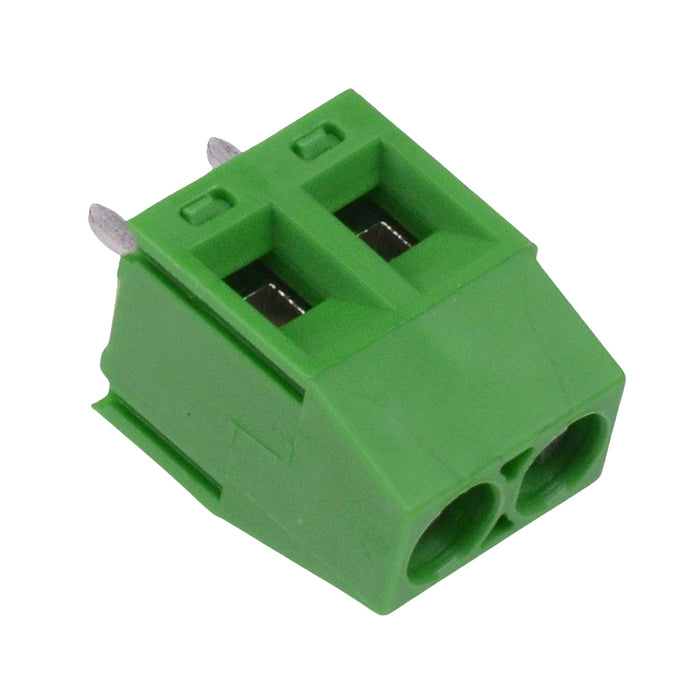

2-Way 5mm PCB Terminal Block Green 15A 300V
by PTR HARTMANN
SKU 488470
MPN: AK350/02-5.0-V-GREEN
Availability:
147 in stock
Original price
£0.81
-
Original price
£0.81
Original price
£0.81
Inc VAT
£0.81
-
£0.81
Current price
£0.81
Inc VAT
2 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5.00mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
2 pole 5.00mm pitch Wire entry parallel to the board Material: PA66 Rating: 15A 300V Wire size: 22-12AWG
Specification
Back order lead time | 10 Days |
Colour | Green |
Contact material | Brass |
Current rating | 15A |
Housing material | PA66 |
Mounting type | PCB Mount |
Number of ways | 2 |
Operating temperature | -40°C to +105°C |
Pitch | 5.00mm |
Termination method | Screw |
Voltage rating | 300VAC |
Wire range | 22-12AWG |
