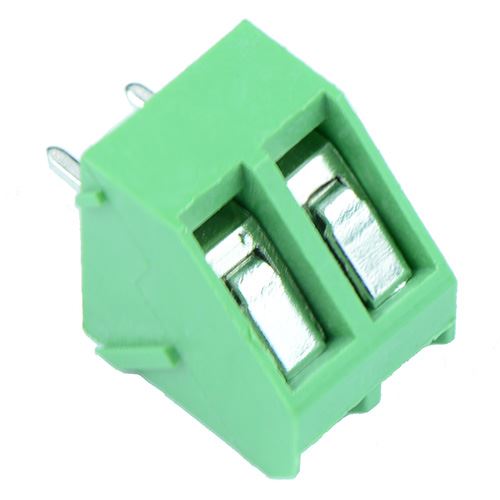

2-Way 45 Deg 5.00mm Terminal Block
SKU 550955
MPN: 550955
Availability:
975 in stock
Original price
£0.31
-
Original price
£0.31
Original price
£0.31
£0.31
-
£0.31
Current price
£0.31
Terminal block featuring 5.00mm pitch and 45 deg cable entry, suitable for mounting on PCBs.
2 ways Rating: 15A 250VAC Wire range: 14-24AWG Housing material: PA66 UL 94V-0 Contact material: Tin plated brass
Specification
| Back Order Lead Time | 30 Days |
| Colour | Green |
| Contact Material | Tin Plated Brass |
| Current Rating | 16A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 2 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 12-22AWG |
