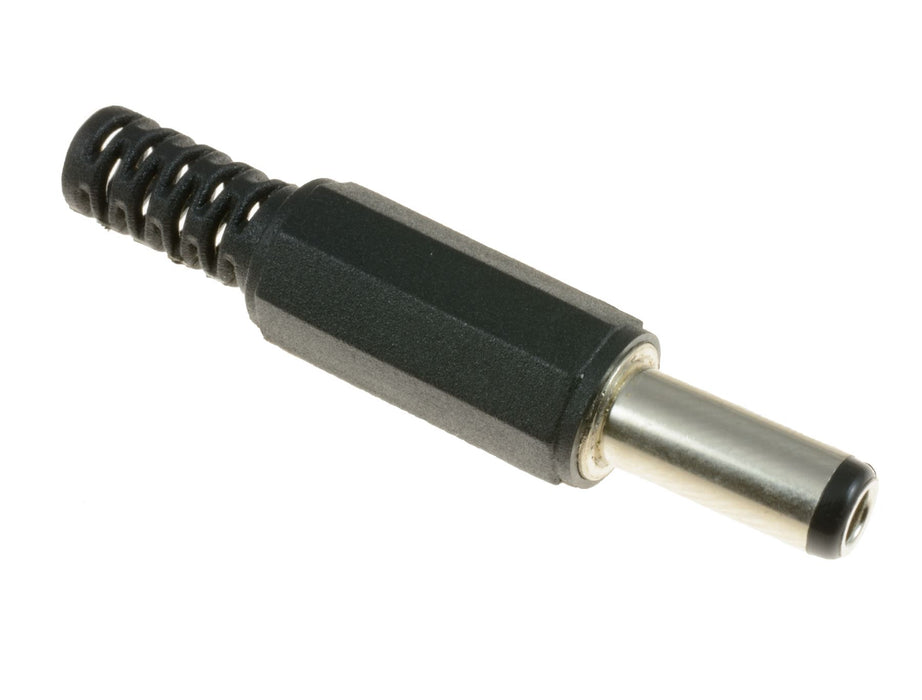

2.8mm x 5.5mm Male DC Power Plug Connector
SKU 210029
MPN: 210029
Availability:
318 in stock
Original price
£0.50
-
Original price
£0.50
Original price
£0.50
£0.50
-
£0.50
Current price
£0.50
DC power plugs suitable for a wide range of applications including repairing and replacing plugs found on mains adaptors.
Moulded strain relief Strong plastic barrel Solder termination 2.8 x 5.5mm tip diameter Barrel length: 13mm
Specification
| Back Order Lead Time | 45 Days |
| Barrel Length | 13mm |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 2.8mm |
| Mounting Type | Wire |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 5.5mm |
| Termination Method | Solder |
