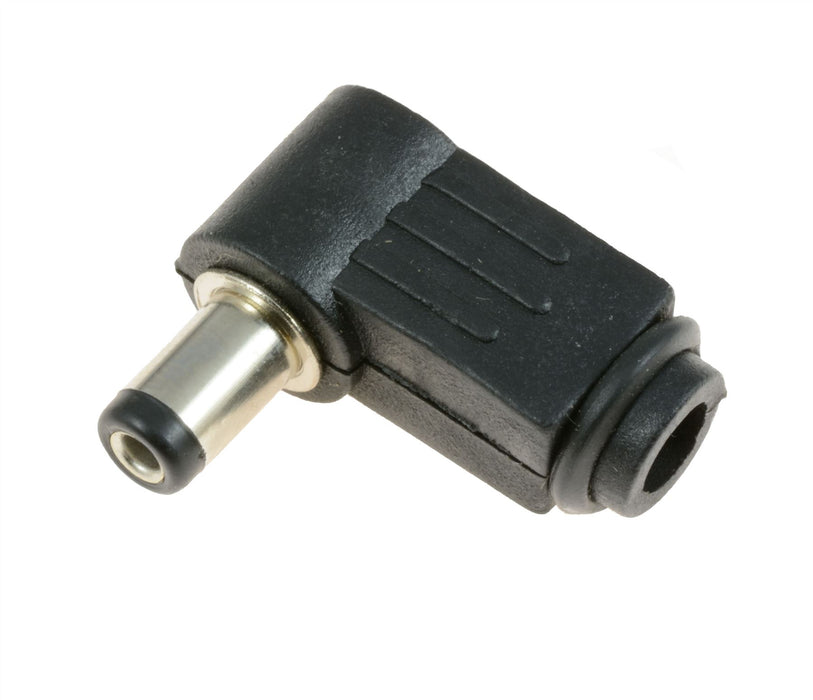

2.5mm x 5.5mm Right Angle Male DC Power Plug Connector
SKU 210015
MPN: 210015
Availability:
237 in stock
Original price
£0.31
-
Original price
£0.31
Original price
£0.31
£0.31
-
£0.31
Current price
£0.31
DC power plugs suitable for a wide range of applications including repairing and replacing plugs found on mains adaptors.
Moulded strain relief Strong plastic barrel Solder termination 2.5mm x 5.5mm tip diameter Barrel length: 9.5mm
Specification
| Back Order Lead Time | 30 Days |
| Barrel Length | 9.5mm |
| Colour | Black |
| Contact Material | Nickel Plated Brass |
| Contact Rating | 1A 30VDC |
| Housing Material | PBT |
| Inner Diameter | 2.5mm |
| Mounting Type | Wire |
| Number of Pins | 2 |
| Operating Temperature | -30°C to +70°C |
| Outer Diameter | 5.5mm |
| Termination Method | Solder |
