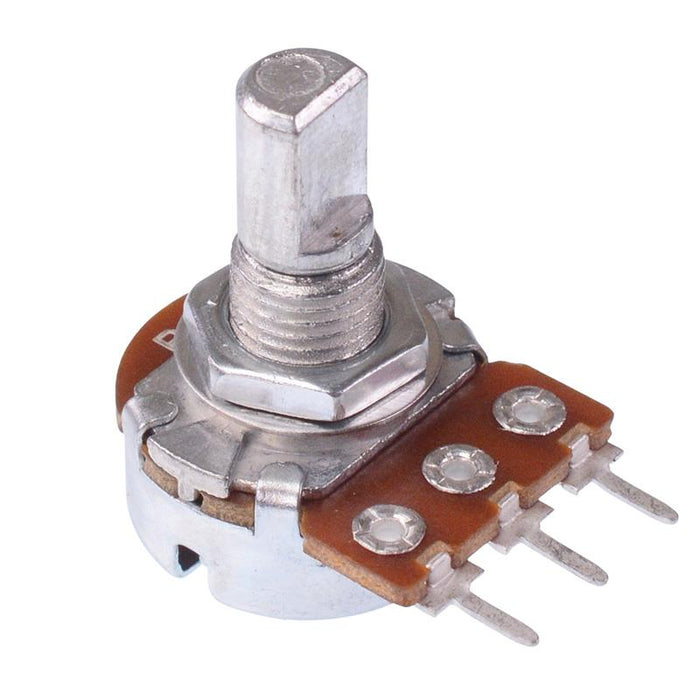

2.2K 16mm Linear Splined Potentiometer D Shaft
SKU 486679
MPN: 486679
Availability:
9 in stock
Original price
£0.58
-
Original price
£0.58
Original price
£0.58
£0.58
-
£0.58
Current price
£0.58
2K2 linear 16mm potentiometer featuring a 6mm D shaft and pin terminals, suitable for PCB mounting.
2K2 linear 6mm diameter D shaft Standard 16mm diameter size 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length Power: 125mW
Specification
| Back Order Lead Time | 5 Days |
| Maximum Voltage | 200V |
| Mounting Hole Diameter | 10mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.125W |
| Resistance | 2.2KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
