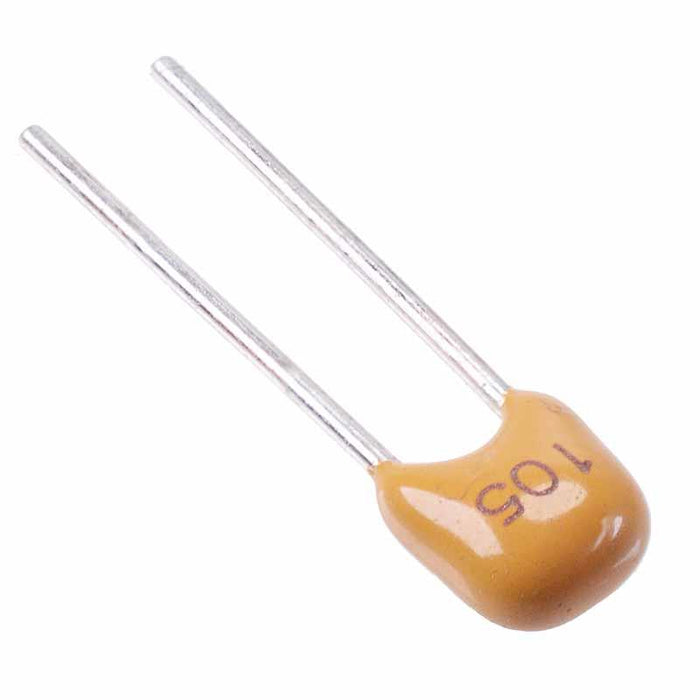

1uF 50V Y5V 0805 5.08mm Radial Ceramic Capacitor 20%
SKU 482961
MPN: JYM
Availability:
1598 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
-
£0.16
Current price
£0.16
1uF 50V radial leaded multilayer ceramic capacitor housed in a miniature 0805 package. The capacitors feature an epoxy coating providing excellent humidity resistance and prevents damage during soldering. Suitable for blocking, coupling and by-passing applications requiring stable performance.
±20% tolerance Y5V dielectric 5.08mm pitch Epoxy coating
Specification
| Back Order Lead Time | 45 Days |
| Capacitance | 1uF |
| Dielectric | Y5V |
| Length | 4.2mm |
| Material | Ceramic |
| MOQ | 10 |
| Mounting Style | Through Hole |
| Operating Temperature | -25°C to +85°C |
| Package | 0805 |
| Pitch | 5.08mm |
| Thickness | 3.0mm |
| Tolerance | ±20% |
| Voltage Rating | 50V |
| Width | 3.8mm |
