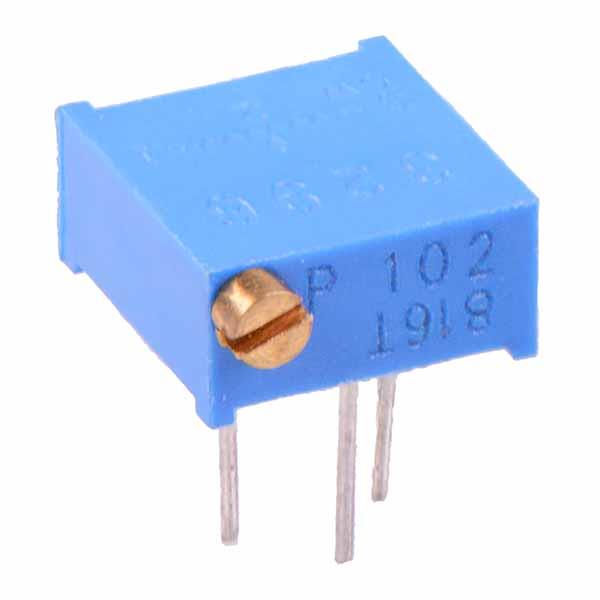

1K 3296P Variable Potentiometer Cermet Trimmer
SKU 482283
MPN: 482283
Availability:
943 in stock
Original price
£0.37
-
Original price
£0.37
Original price
£0.37
£0.37
-
£0.37
Current price
£0.37
1K side adjust 3/8" multi-turn cermet trimming potentiometer fully sealed in a robust construction suitable for PCB mounting.
1K resistance Side adjust Mounted horizontally or vertically 10% tolerance
Specification
| Back Order Lead Time | 30 Days |
| Maximum Voltage | 300V |
| MOQ | 5 |
| Mounting Type | PCB |
| Operating Temperature | -55°C to +125°C |
| Pitch | 5mm |
| Power Rating | 0.5W |
| Resistance | 1KΩ |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±10% |
| Total Rotation | 30 Turns |
