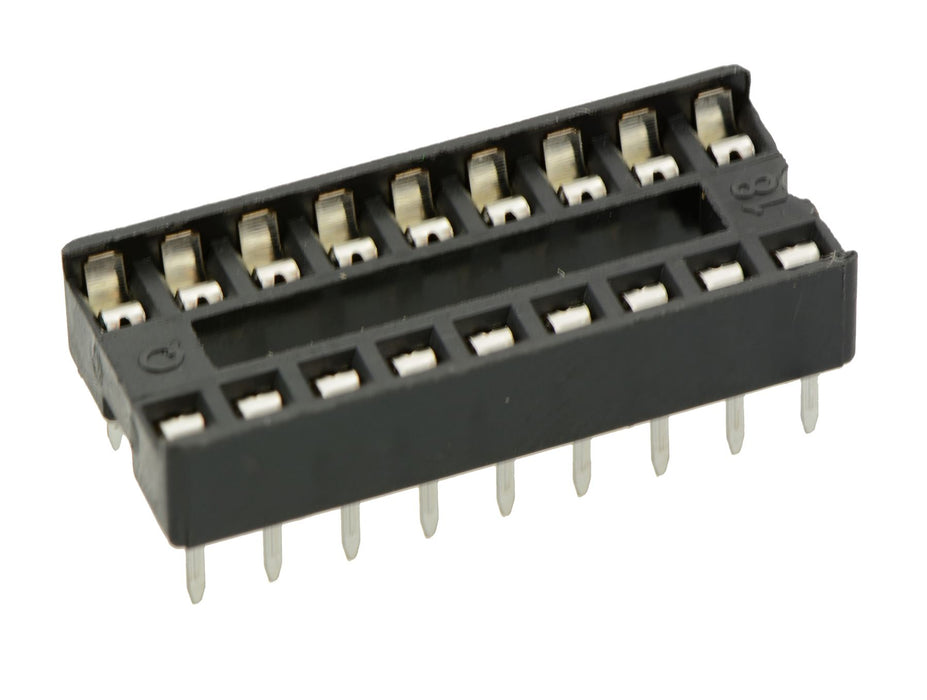

18-Pin DIP IC Socket 7.62mm
SKU 222004
MPN: 222004
Availability:
843 in stock
Original price
£0.17
-
Original price
£0.17
Original price
£0.17
£0.17
-
£0.17
Current price
£0.17
Dual inline sockets with a thermoplastic body and tin plated phosphor bronze contacts. The sockets feature screw machined pins and can be mounted end to end to form one continuos run.
PCB hole: 0.6mm Height (above PCB): 5.1mm 2.54mm pitch Current rating: 1A Dimensions: 22.86 x 10.16 x 5.1mm (Length x Width x Height)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Tin Plated Phosphor Bronze |
| Current Rating | 1A |
| Housing Material | PBT |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Pins | 18 |
| Number of Ways | 18 |
| Operating Temperature | -45°C to +105°C |
| Pitch | 7.62mm |
| Termination Method | Solder |
