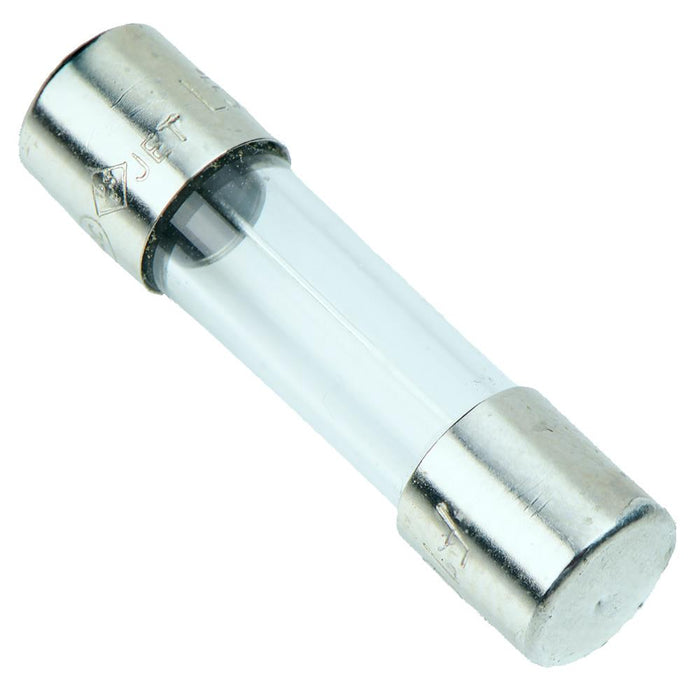

16A 5x20mm Glass Quick Blow Fuse
SKU 484608
MPN: 484608
Availability:
2425 in stock
Original price
£0.10
-
Original price
£0.10
Original price
£0.10
£0.10
-
£0.10
Current price
£0.10
16A glass bodied quick blow fuses housed in a 5 x 20mm package suitable for the protection of electrical circuits and appliances.
Current rating 16A 5 x 20mm overall dimensions Breaking capacity 35A 250V AC UL approved
Specification
| Back Order Lead Time | 30 Days |
| Blow Characteristic | Fast Blow |
| Body Material | Glass |
| Contact Material | Nickel Plated Brass |
| Current Rating | 16A |
| Diameter | 5mm |
| Length | 20mm |
| MOQ | 10 |
| Operating Temperature | -55°C to +125°C |
| Voltage Rating | 250VAC |
