15mm Roller Lever Waterproof Microswitch SPDT 10A IP67
SKU 481707
MPN: 481707
Availability:
153 in stock
Original price
£2.23
-
Original price
£2.23
Original price
£2.23
£2.23
-
£2.23
Current price
£2.23

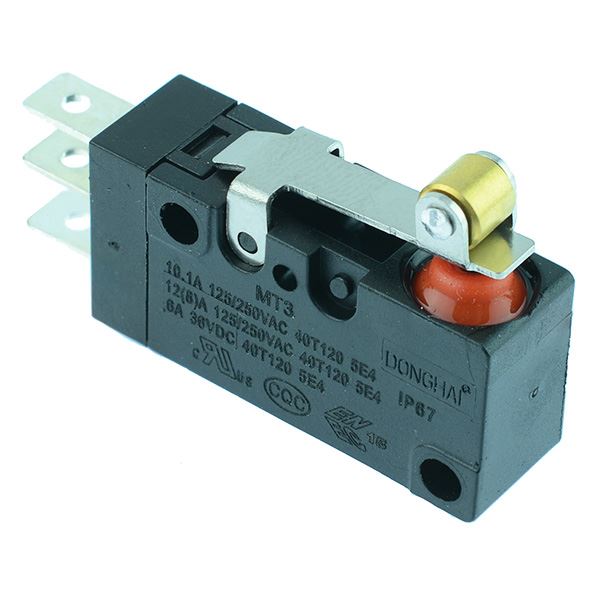

Microswitch featuring a roller lever actuator, housed in a waterproof compact package capable of switching up to 10A. The switch features quick connect terminals and is suitable for domestic and industrial applications.
15mm roller lever actuator Rating: 10A 250VAC NO / NC contacts 4.8mm quick connect terminals Operating force: 300gf max Body dimensions: 33 x 10.3 x 15.8mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Electrical Life | 100,000 Cycles |
| Number of Positions | 2 |
| Operating Force | 300gf Max |
| Protection Level | IP67 |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
