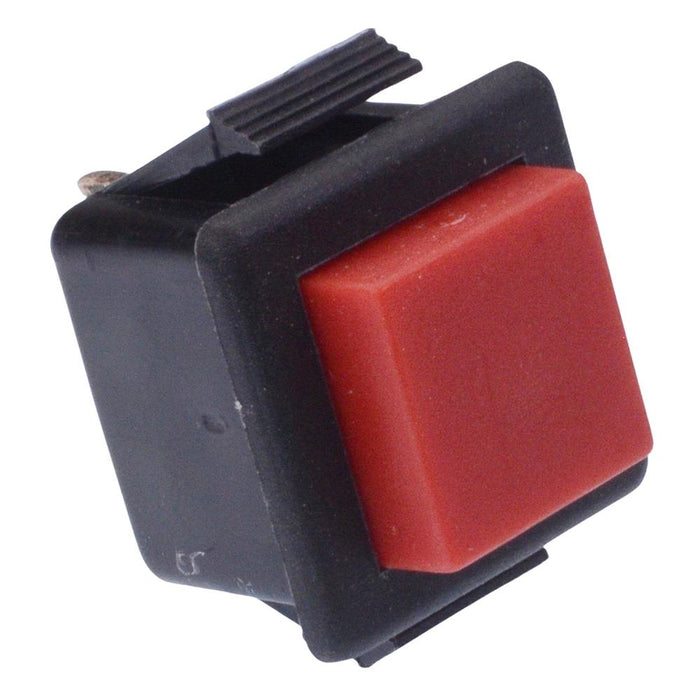

1442N Red On-(Off) Normally Closed Momentary Push Button Switch SPST 3A
by APEM
SKU 488170
MPN: 1442N RED
Availability:
50 in stock
Original price
£4.44
-
Original price
£4.44
Original price
£4.44
£4.44
-
£4.44
Current price
£4.44
The 1442N is a red momentary push button switch with snap-in mounting and SPST contacts. The switch features a square plunger and PC terminals making it suitable for panel mounting and PCB applications.
SPST normally closed contacts PC terminals Square plunger Rating: 3A 12VDC Panel cut-out: 14.3 x 16.5mm Panel thickness: 2mm max
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Copper |
| Contact Rating | 3A 12VDC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to 55°C |
| Panel Cut Out | 16.5 x 14.3 |
| Panel Thickness | 2mm |
| Product Series | 1400N |
| Switch Operation | On-(Off) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
