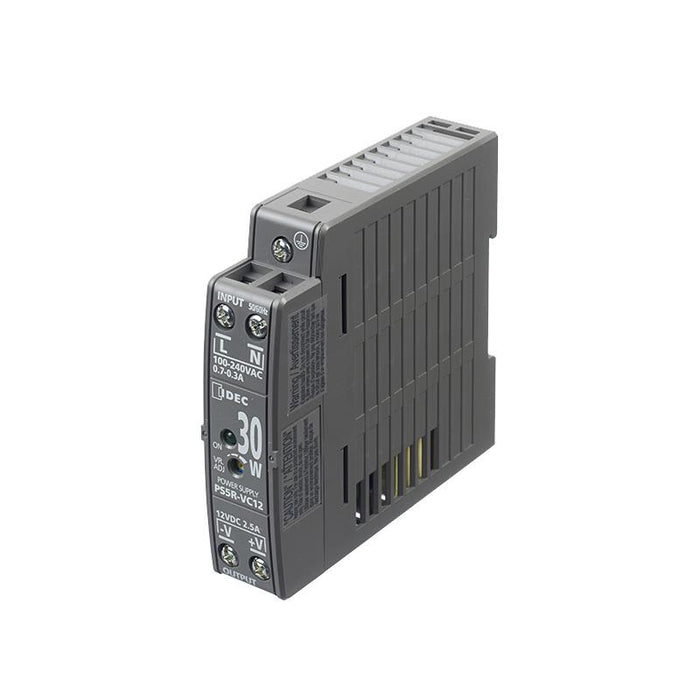

PS5R-VC12 12VDC 2.5A 30W DIN Rail Power Supply IDEC

The PS5R-VC12 is a 12V 30W DIN rail mount switching power supply with global approvals for both industrial and hazardous locations. The power supply features a wide operating temperature range and compact design preserving panel space.

Output voltage: 12VDC

Output current: 2.5A

Output capacity: 30W

Input voltage: 85-264VAC / 100-370VDC

Spring-up terminals accept ring & fork terminals

Approved for use in Class I Division 2 hazardous locations

Can be installed in 6 directions

Overcurrent protection with auto-reset

Five-year factory warranty

Dimensions: 95 x 90 x 22.5mm (Depth x Height x Width)
