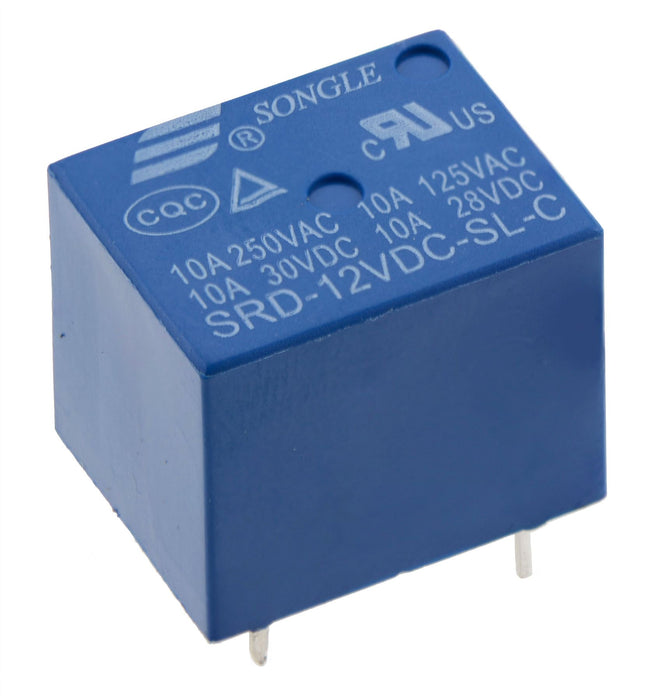

12V Mini Power Songle Relay SPDT 10A
SKU 309001
MPN: 309001
Availability:
94 in stock
Original price
£0.86
-
Original price
£0.86
Original price
£0.86
Inc VAT
£0.86
-
£0.86
Current price
£0.86
Inc VAT
Songle power relay with SPDT contacts suitable for PCB mounting.
Compact and sealed construction Coil rated voltage: 12VDC Contacts: SPDT Maximum switching current: 10A Maximum switching voltage: 110VDC, 250VAC Coil Power: 0.45W Dimensions: 19 x 15 x 15mm
Specification
Ambient temperature | -25°C to +70°C |
Back order lead time | 30 Days |
Coil resistance | 320Ω |
Coil voltage | 12VDC |
Contact arrangement | SPDT |
Maximum continuous voltage | 14.4VDC |
Maximum switching current | 10A |
Maximum switching voltage | 250VAC / 110VDC |
Mounting type | PCB |
Number of contacts | 5 |
Power consumption | 0.45W |
Terminal type | Through Hole |
