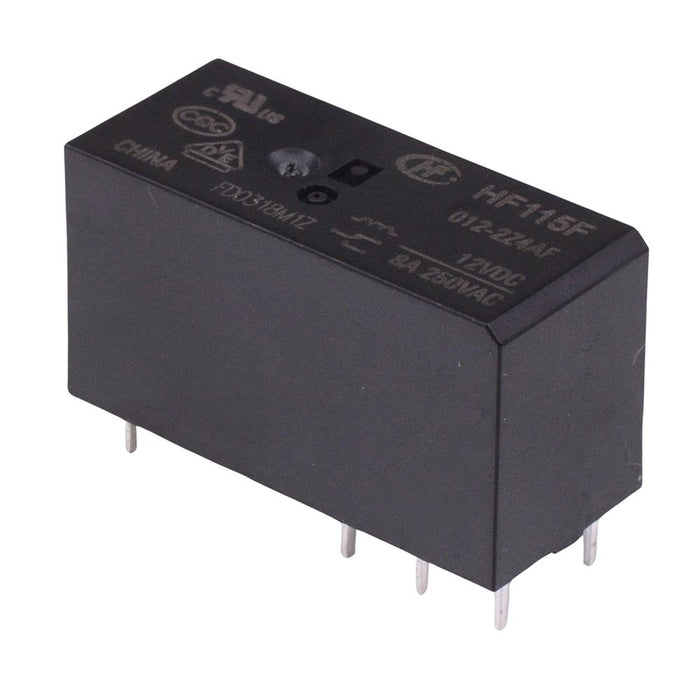

12V High Power 8A PCB Relay DPDT HF115/012-2Z4AF
by HongFa
SKU 550024
MPN: HF115/012-2Z4AF
Availability:
106 in stock
Original price
£2.77
-
Original price
£2.77
Original price
£2.77
£2.77
-
£2.77
Current price
£2.77
12V miniature high power relay manufactured by HongFa, featuring DPDT contacts and 8A maximum switching current. The relays feature 400mW coil power and are suitable for a wide range of through hole PCB applications.
12V coil voltage DPDT contact configuration Contact rating: 8A 250VAC Maximum switching current: 8A Maximum switching voltage: 440VAC / 300VDC Maximum switching power: 2000VA Pin pitch: 5.04mm Dimensions: 29 x 12.7 x 15.7mm (L x W x H)
Specification
| Ambient Temperature | -40°C to +85°C |
| Back Order Lead Time | 30 Days |
| Coil Resistance | 360Ω |
| Coil Voltage | 12VDC |
| Contact Arrangement | DPDT |
| Maximum Continuous Voltage | 18VDC |
| Maximum Switching Current | 8A |
| Maximum Switching Voltage | 440VAC / 30VDC |
| Mounting Type | PCB |
| Number of Contacts | 8 |
| Power Consumption | 0.4W |
| Terminal Type | Through Hole |
