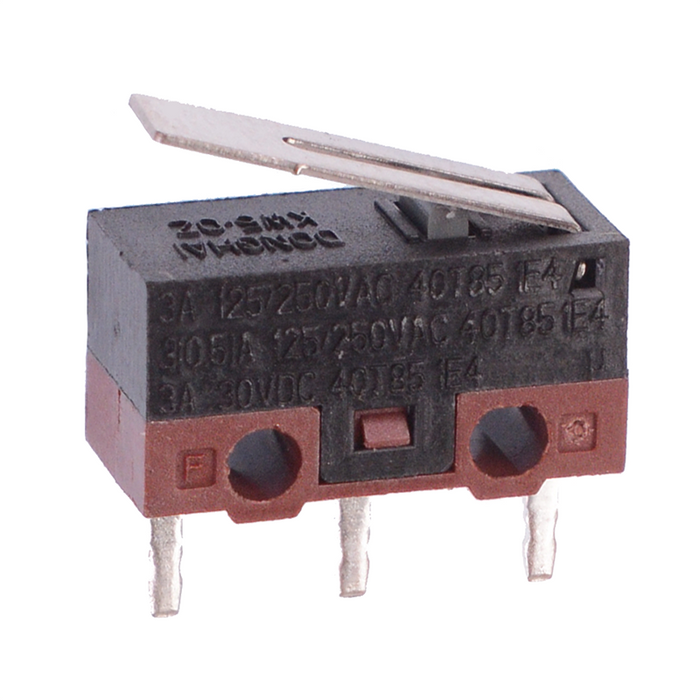

12mm Lever Subminiature PCB Microswitch SPDT 3A
SKU 482273
MPN: 482273
Availability:
2534 in stock
Original price
£0.41
-
Original price
£0.41
Original price
£0.41
£0.41
-
£0.41
Current price
£0.41

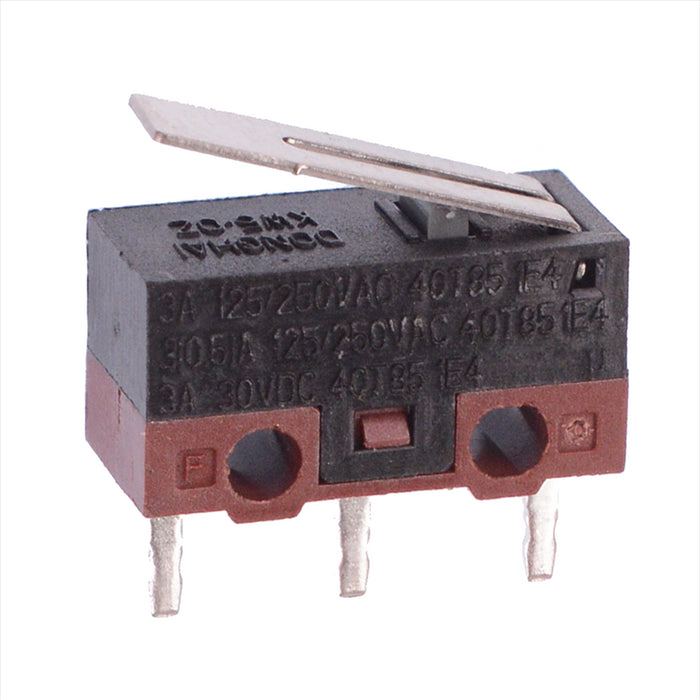

Subminiature microswitch featuring a 12mm lever actuator housed in a compact package capable of switching up to 3A. The switch features solder terminals and is suitable for PCB applications.
12mm lever actuator
Rating: 3A 250VAC
NO / NC contacts
Solder PCB terminals
Operating force: 100gf
Body dimensions: 12.8 x 5.8 x 6.5mm (Length x Width x Height)
Specification
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 100gf Max |
| Pitch | 5.1mm |
| Terminal Type | Through Hole |
| Voltage Rating | 250VAC |
