12 Way 150A Power Distribution Busbar
SKU 489048
MPN: SF51033-12SC
Availability:
91 in stock
Original price
£9.83
-
Original price
£9.83
Original price
£9.83
£9.83
-
£9.83
Current price
£9.83

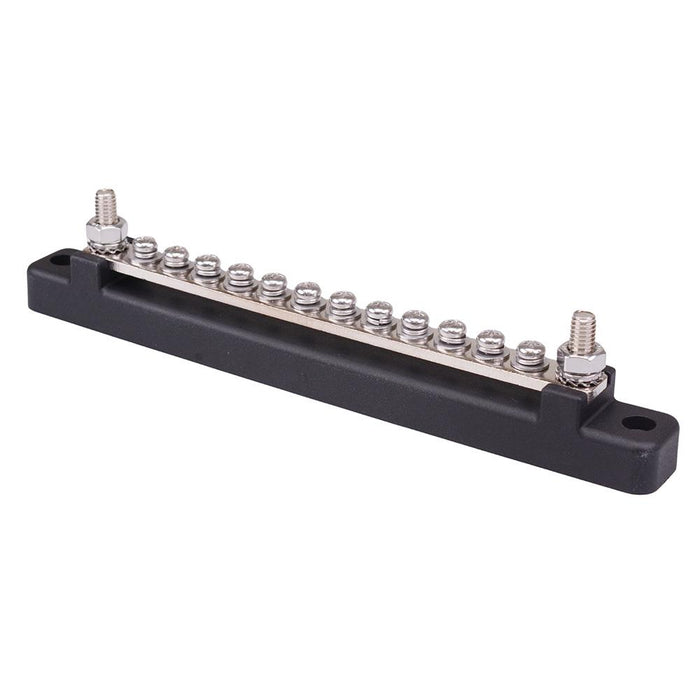

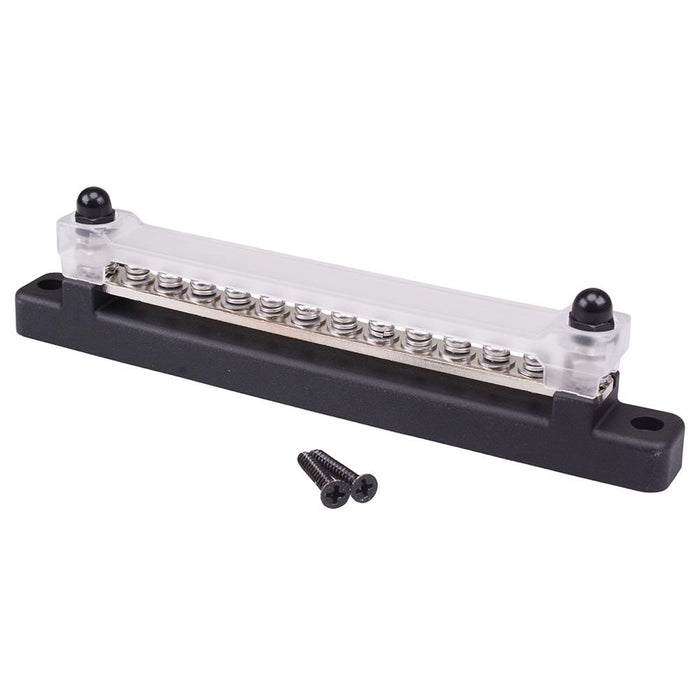

12 way power distribution busbar featuring M4 screw terminals and 2*M6 stud terminals. The stud terminals are used as the main power connections and the screw terminals for distributing the power. The busbar comes complete with fastening screws and protective cover.
12*M4 screw terminals 2*M6 stud terminals Protective cover Current rating: 130A AC / 150A DC Voltage rating: 300VAC / 48VDC Dimensions: 181 x 20 x 42.5mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Current Rating | 150A |
| Mounting Type | Chassis Mount |
| Termination Method | M4 / M6 Stud |
| Voltage Rating | 48VDC |
