10pcs SPST-NO Reed Switch 500mA 180VDC - RI-27AAA
by Comus
SKU 552502
MPN: RI-27H
Availability:
Out of stock
Sold out
Original price
£9.81
-
Original price
£9.81
Original price
£9.81
£9.81
-
£9.81
Current price
£9.81

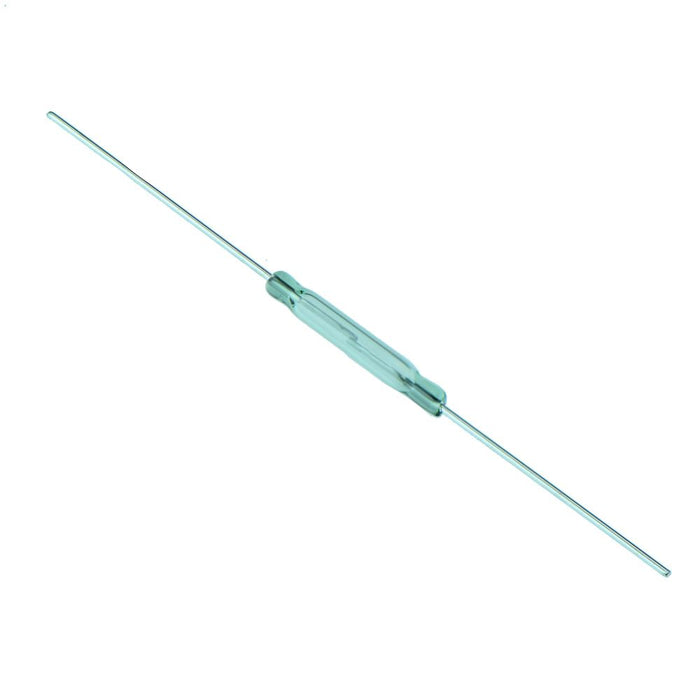

The RI-27AAA pico dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Pack of 10 switches
Ideal for ATE switching
Contact layers: ruthenium on gold
Superior glass-to-metal seal and blade alignment
Maximum switching power: 10W
Maximum switching voltage: 180VDC, 130VAC
Maximum switching current: 500mA
Operating range: 10-19AT
Specification
| Back Order Lead Time | 180 Days |
| Bounce Time | 0.05ms |
| Carry Current | 1.5A |
| Contact Configuration | SPST-NO |
| Diameter | 1.8mm |
| Length | 13.5mm |
| Material | Rhodium |
| Maximum Switching Capacity | 10W |
| Maximum Switching Current | 0.5A |
| Maximum Switching Voltage | 180VDC, 130VAC |
| Operating Temperature | -55°C to +125°C |
| Pull In Sensitivity | 10-19AT |
| Release Time | 30µs |
