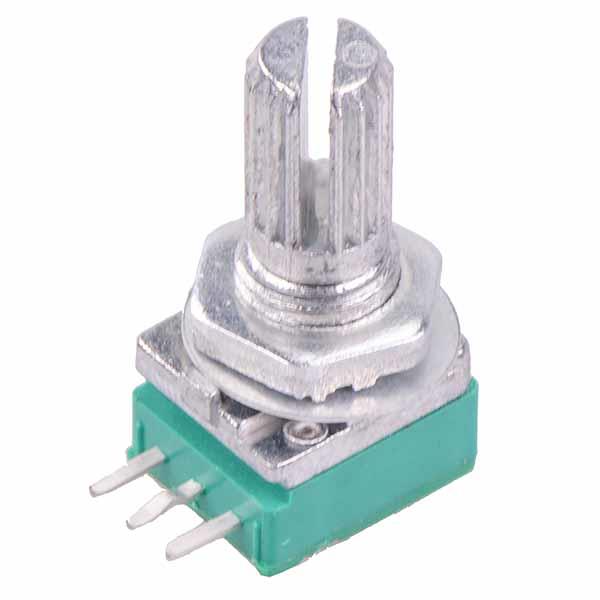

10K Logarithmic 9mm Potentiometer Knurled 6mm Metal Shaft
SKU 482352
MPN: 482352
Availability:
324 in stock
Original price
£0.51
-
Original price
£0.51
Original price
£0.51
£0.51
-
£0.51
Current price
£0.51
10K logarithmic 9mm potentiometer featuring a metal 6mm splined shaft. The potentiometers are suitable for PCB or panel mount applications including use with communications equipment, consumer goods, portable electronics, commercial appliances and sound equipment.
Metal 6mm splined shaft 7mm panel cut-out ±20% tolerance 15mm shaft length 0.025W power rating 25V AC maximum operating voltage
Specification
| Back Order Lead Time | 45 Days |
| Maximum Voltage | 50VAC / 20VDC |
| Mounting Hole Diameter | 9mm |
| Mounting Type | PCB |
| Operating Temperature | -10°C to +70°C |
| Pitch | 2.5mm |
| Power Rating | 0.05W |
| Resistance | 10KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 280° |
