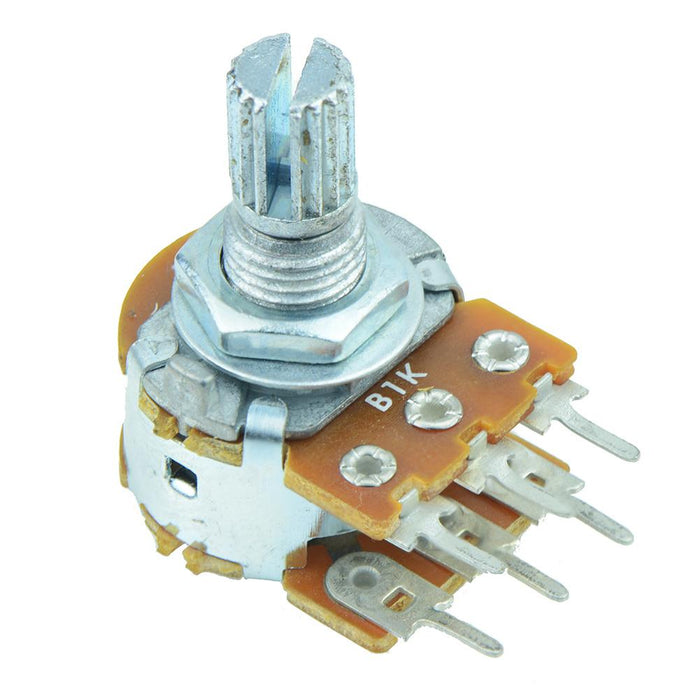

10K Logarithmic 16mm Stereo Splined Potentiometer
SKU 482326
MPN: 482326
Availability:
1583 in stock
Original price
£0.59
-
Original price
£0.59
Original price
£0.59
Inc VAT
£0.59
-
£0.59
Current price
£0.59
Inc VAT
10K logarithmic carbon track stereo 16mm potentiometer featuring a splined 6mm shaft suitable for PCB mounting.
Logarithmic taper Standard 16mm metal body PCB contacts 20% tolerance Panel cut-out: 7mm 5mm terminal pitch 15mm shaft length
Specification
Back order lead time | 45 Days |
Dimensions | 17mm Diameter |
Maximum voltage | 150V |
Mounting hole diameter | 7mm |
Mounting type | PCB |
Operating temperature | -10°C to +70°C |
Pitch | 5mm |
Power rating | 0.06W |
Resistance | 10KΩ |
Shaft diameter | 6mm |
Taper | Logarithmic |
Termination type | Pin |
Tolerance | ±20% |
Total rotation | 300° |
