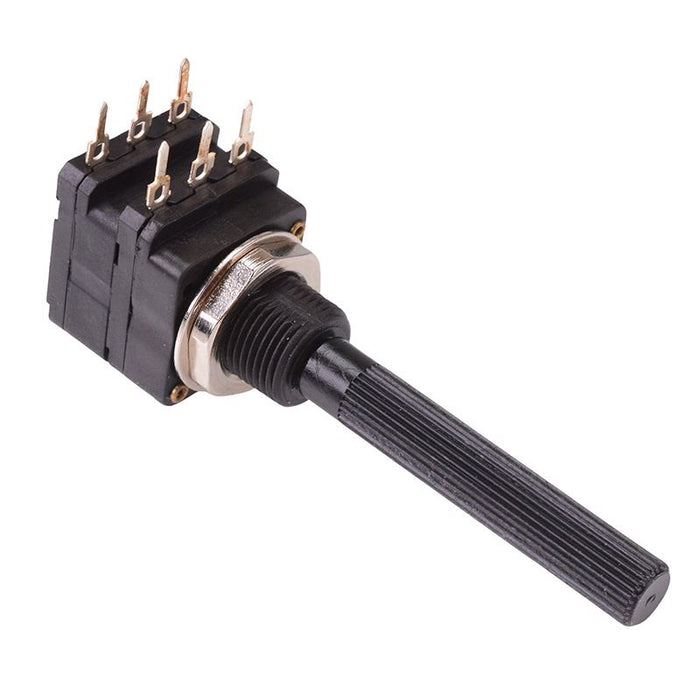

10K Linear Stereo PC16 Potentiometer Piher
by Piher
SKU 486434
MPN: 6PSI-10K
Availability:
Only 5 left!
Original price
£5.20
-
Original price
£5.20
Original price
£5.20
£5.20
-
£5.20
Current price
£5.20
Piher enclosed 10K linear stereo potentiometer featuring a 6mm diameter shaft and self-extinguishing plastic case, suitable for PCB applications.
6mm diameter splined shaft
31.5mm shaft length
±20% tolerance
300° mechanical rotation
Carbon resistive element
Dust proof enclosure
Self extinguishable material UL94V-0
Piher PC16 series
Specification
| Back Order Lead Time | 5 Days |
| Maximum Voltage | 250VDC |
| Mounting Hole Diameter | 10mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.2W |
| Resistance | 10KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
