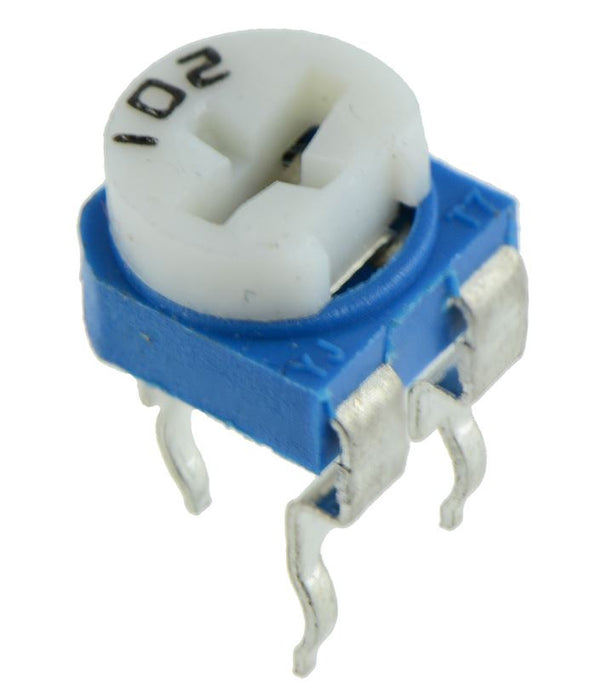

100R 6mm Horizontal Preset Trimmer Potentiometer
SKU 133056
MPN: 133056
Availability:
212 in stock
Original price
£0.29
-
Original price
£0.29
Original price
£0.29
£0.29
-
£0.29
Current price
£0.29
Cermet trimmer potentiometers with a 210° rotation and 0.1W rated power suitable for horizontal PCB mounting.
100R linear 0.1W rated power Low rotation torque
Specification
| Back Order Lead Time | 30 Days |
| Maximum Voltage | 50VDC |
| MOQ | 5 |
| Mounting Type | PCB |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.1W |
| Resistance | 100Ω |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 210° |
