100105 APEM 2 Axis 4 Position Fingertip Joystick 4A 30VDC
by APEM
SKU 488554
MPN: 1V15F1100
Availability:
50 in stock
Original price
£28.89
-
Original price
£28.89
Original price
£28.89
Inc VAT
£28.89
-
£28.89
Current price
£28.89
Inc VAT

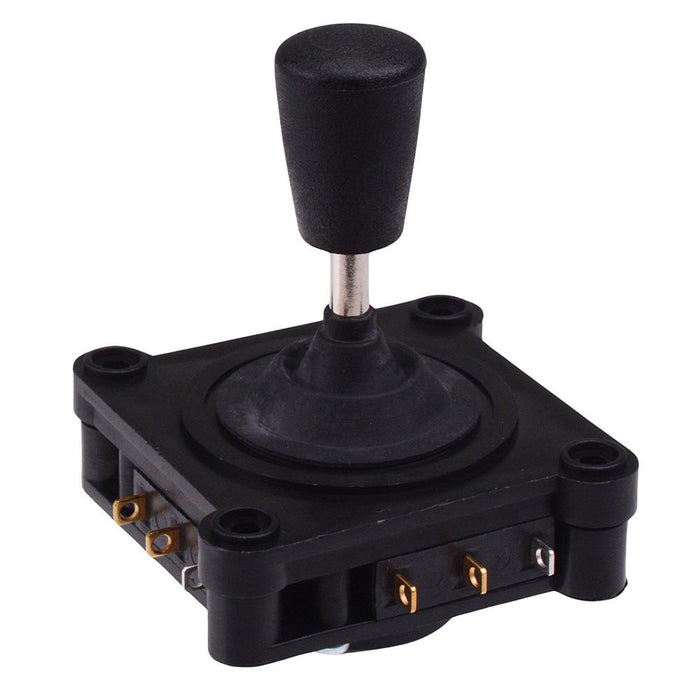

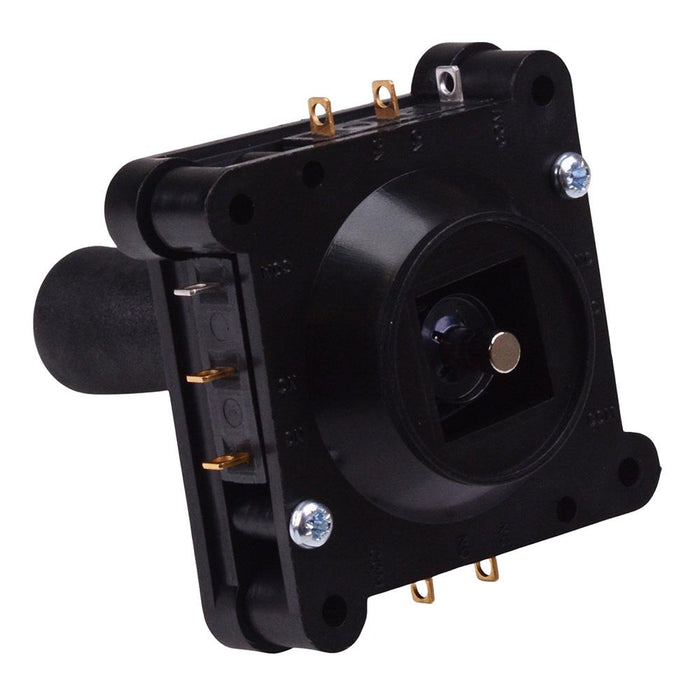

The 1V15F1100 is a high quality 4 position joystick with 2 axis, manufactured by APEM. The 1000 series is a versatile low-cost joystick ideal for light to medium duty envirnments where proportional control is not a necessity. The joystick is single pole based on V4 microswitches with a 4A 30VDC rating and is suitable for a wide range of applications.
2 axis Sealing: IP67 above panel Rating: 4A 30VDC 4 point screw mounting Conical handle Screw mount boot Mounting hole pitch: 36 x 36mm Dimensions: 44 x 44 x 64mm (length x width x height)
Specification
| Back Order Lead Time | 10 Days |
| Handle | Conical |
| Joystick Travel | ±12° |
| Mechanical Life | 5,000,000 Cycles |
| Number of Axis | 2 |
| Operating Temperature | -20°C to +50°C |
| Protection Level | IP67 |
| Rating | 4A 30VDC |
| Technology | Microswitch |
| Terminal Type | Solder |
