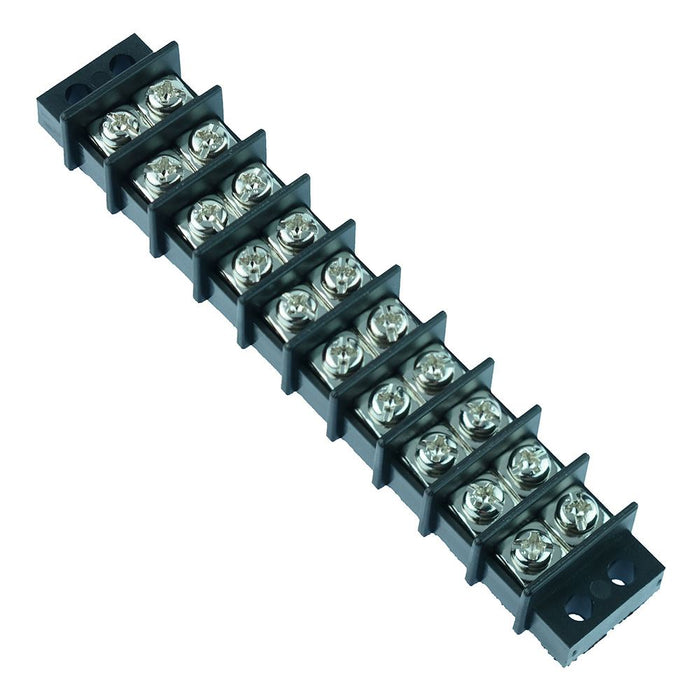

10 Way Screw Barrier Terminal Block
SKU 481143
MPN: 481143
Availability:
75 in stock
Original price
£5.48
-
Original price
£5.48
Original price
£5.48
£5.48
-
£5.48
Current price
£5.48
10 way screw to screw barrier terminal block manufactured from rugged PA66, suitable for panel mount applications.
9.5mm pitch Rating: 20A 300V Wire range: 12-22AWG Housing material: PA66 UL94V-0 Terminal material: tin plated brass Screw material: nickel plated steel
Specification
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Material | Tin Plated Brass |
| Current Rating | 20A |
| Housing Material | PA66 |
| Mounting Type | Panel Mount |
| Number of Ways | 10 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 9.5mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 12-22AWG |
