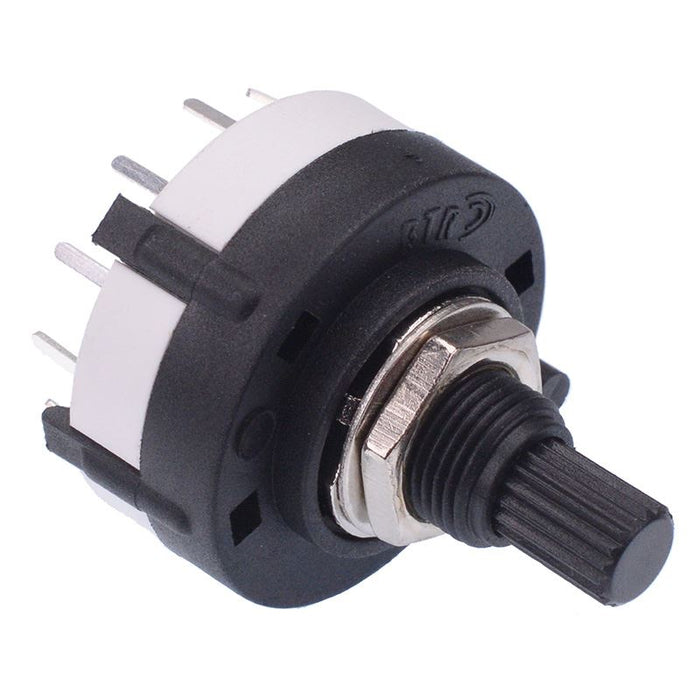

1 Pole 12 Way Rotary Switch Splined Shaft PCB Terminals
SKU 486503
MPN: 486503
Availability:
142 in stock
Original price
£1.63
-
Original price
£1.63
Original price
£1.63
£1.63
-
£1.63
Current price
£1.63
1 pole break before make rotary switch featuring 12 ways and 18T splined 6mm shaft. The switch features PCB terminals and are suitable for a wide range of through hole applications.
1 pole 12 way
18T splined shaft
PCB terminals
Break before make
7.5mm shaft length
Complete with nut, washer and position stop
Dimensions: 33 x 26mm (Height x Diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Configuration | 1P12T |
| Contact Rating | 2.5A 125VAC, 0.35A 125VDC |
| Current Rating | 2.5A @ 125VAC |
| Electrical Life | 15,000 Cycles |
| Material | Nylon |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Ways | 12 |
| Operating Force | 400gf |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 10mm |
| Terminal Type | Solder |
| Voltage Rating | 125VAC |
