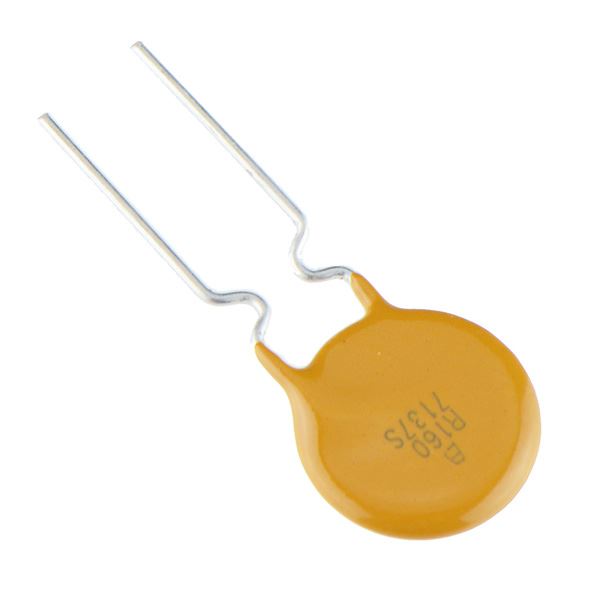

1.85A PTC Resettable Fuse 30V MF-R185-0-99
by Bourns
SKU 551901
MPN: MF-R185-0-99
Availability:
176 in stock
Original price
£0.68
-
Original price
£0.68
Original price
£0.68
£0.68
-
£0.68
Current price
£0.68
Bourns resettable fuse suitable for protecting against over-current for a wide range of applications where a low voltage power supply is used.
Radial Leads Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements Maximum voltage: 30V Hold current: 1.85A Trip current: 3.7A Dimensions: 12 x 18.4 x 3.0mm (Width x Height x Depth) Operating temperature: -40°C to +85°C Bourns MF-R series
Specification
| Back Order Lead Time | 5 Days |
| Current Rating | 40A |
| Depth | 3.0mm |
| Height | 18.4mm |
| Operating Temperature | 40°C to +85°C |
| Pitch | 5.1mm |
| Trip Current | 3.7A |
| Trip Time | 8.7s |
| Voltage Rating | 30V |
| Width | 12mm |
