10K Linear 16mm Right Angle Splined Potentiometer
SKU 482475
MPN: 482475
Availability:
707 in stock
Original price
£0
Original price
£0.58
-
Original price
£0.58
Original price
Current price
£0.58(inc. VAT)
£0.58
-
£0.58
Current price
£0.58
Quantity Discounts
| Buy 25 - 99 | Get 13% off | £0.50(inc. VAT) each |
| Buy 100 - 249 | Get 21% off | £0.46(inc. VAT) each |
| Buy 250 - 499 | Get 28% off | £0.42(inc. VAT) each |
| Buy 500+ | Get 33% off | £0.39(inc. VAT) each |

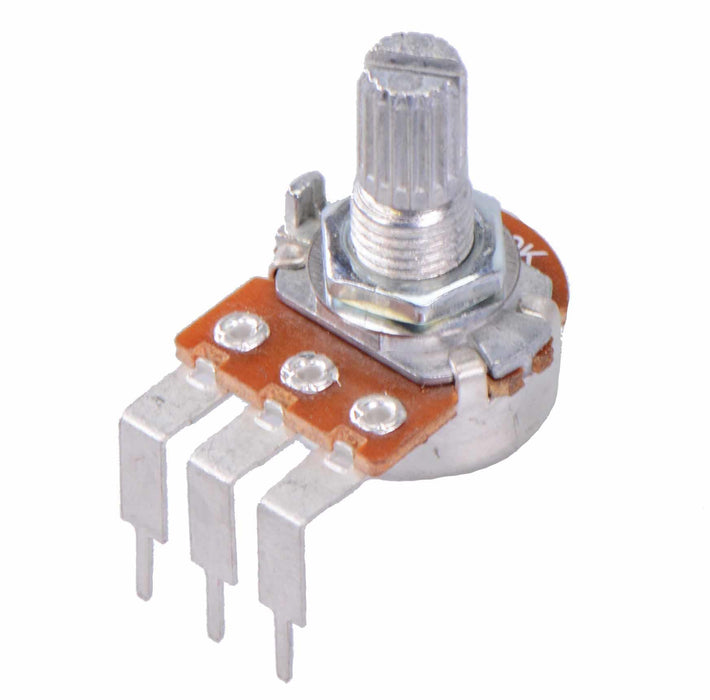

10K linear carbon track 16mm potentiometer featuring a splined 6mm shaft suitable for horizontal PCB mounting.
Linear taper Standard 16mm metal body Right angle PCB contacts 20% tolerance Panel cut-out: 7mm 5mm terminal pitch 15mm shaft length
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 200V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | PCB |
| Operating Temperature | -10°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.125W |
| Resistance | 10KΩ |
| Shaft Diameter | 6mm |
| Taper | Linear |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
